Carbon Spine Frame

One surgical table - Multiple disciplines!

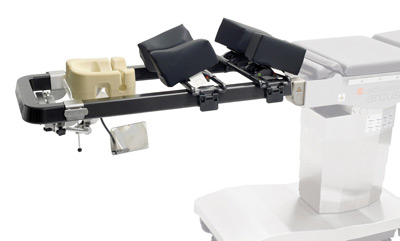

The schaerer Carbon Spine Frame (CSF) is an innovative solution for patient positioning in spine surgery. The four-post positioners distribute the weight to the chest and pelvic area, which enables free abdomen.

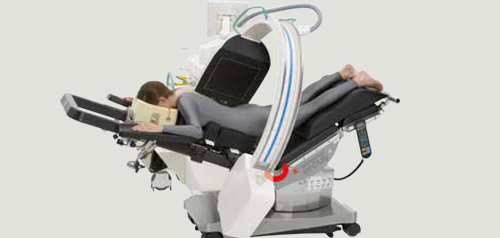

In combination with a schaerer axis or arcus operating table the system gets its unique cantilever design, which permits an unlimited access for staff and equipment, such as C-arms. Furthermore, the design allows the transportation of the patient and intraoperative adjustments of the patient position.

The benefits at a glance

• Perioperative motorized table top adjustments
• Access for anesthesia staff, equipment and C-arms
• Individual adjustments for free abdomen
• Large 3D X-ray window
• Supports ergonomic working

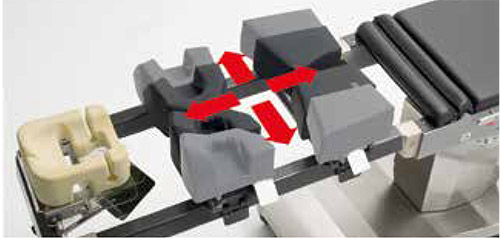

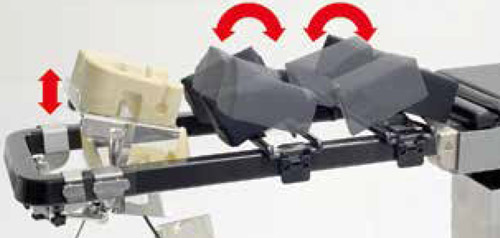

Individual adjustment of lateral position and an - gulation of the pads by one-touch release. Adap - tion for tall patients by longitudinal adjustment of the pad holders. The anatomically shaped visco elastic pads for male and female patients provides

solid support during surgery and enables free ab - domen. With a maximal patient weight capacity of 240 kg / 529 lbs (schaerer ® arcus), the schaerer ® Carbon Spine Frame can also be used in obese patients

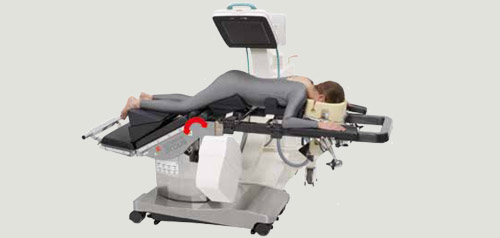

The schaerer ® Carbon Spine Frame does not re - quire a floor support. The table top can be moved while the patient is positioned on the frame with - out adjusting any floor support. The motorized

oint moves the table top to a flex or reflex position, even during surgery. The low minimum height provides an ergonomic working position for the surgeon and best access to the patient.
